1 / 4

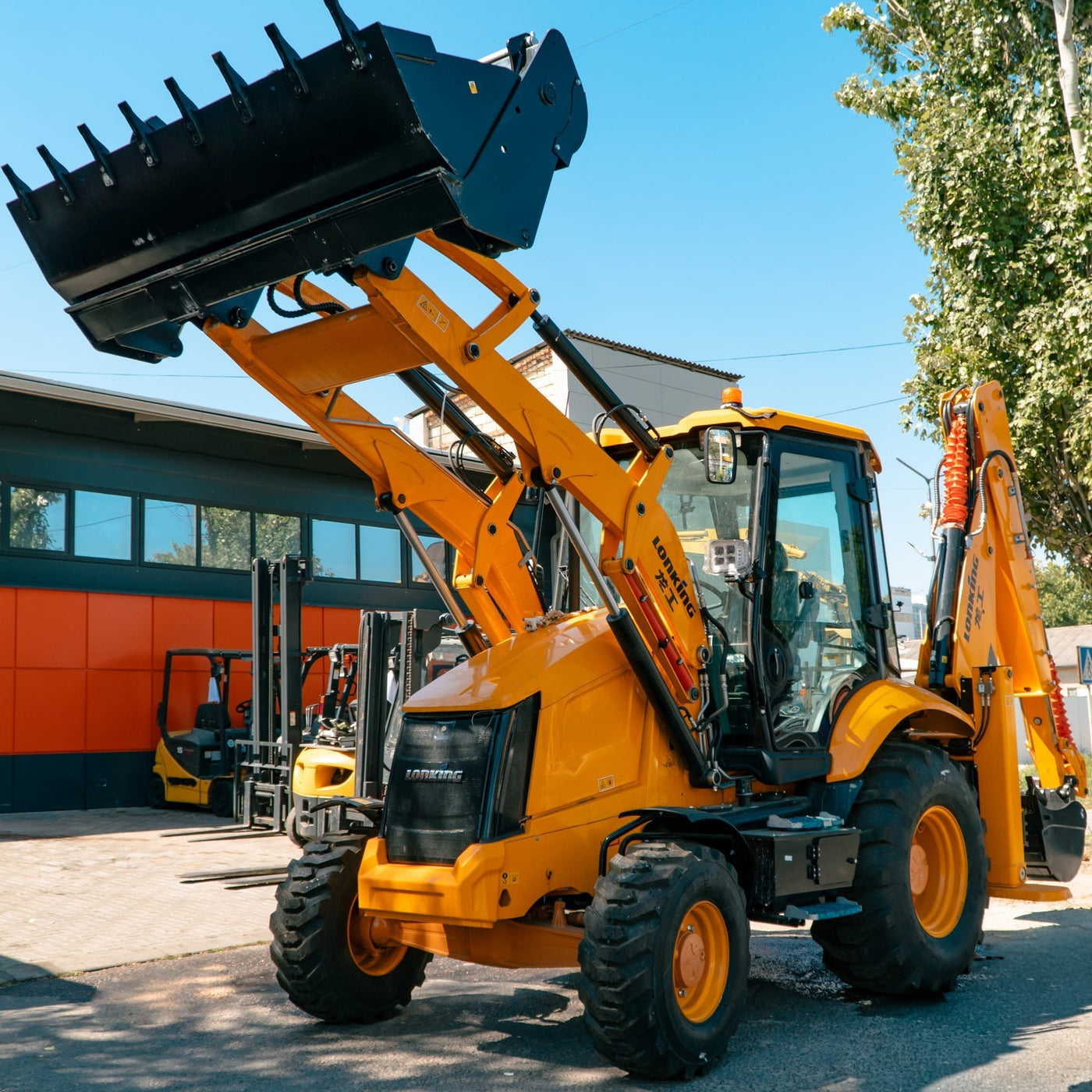

83C Backhoe Loader

8300 Operating weight, kg

1.0 Loader bucket capacity, m3

0.2 Excavator bucket capacity, m3

5835 Length, mm

2350 Width, mm

€69,000

1,399,320.00 MDL

Available to order (90 days)

Request an offer

Contact a sales representative Contact us on WhatsApp

Customer type *

Individual Order under your personal name Company Order on behalf of a company

Phone *

Only digits are allowed

Full name * Only letters are allowed

Email * Please enter a valid email address

Delivery method *

Pickup from store Pick up the product from our location Delivery Delivery to the provided address

Delivery address / Location * Delivery address / Location

Payment *

Bank transfer Invoice / bank details on request Pay at store Pay at our location (POS / cash)

Offer request details

Company * Company

IDNO * Please enter 13 digits (IDNO) Please enter 13 digits (IDNO)

VAT * Use only letters/numbers (and '-' if needed)

Legal address * Legal address

Bank details * Bank details

The Lonking 83C backhoe loader is a versatile 4x4 machine in the 8.5-ton class, designed for construction sites, agricultural, and industrial work where a single piece of equipment needs to perform both precise loading and excavation operations. Combining a 1.0 m³ front bucket with an excavating arm fitted with a 0.2 m³ bucket, the Lonking 83C can dig, load, and transport without changing machinery.

The 74 kW (100 hp) Weichai engine provides high torque at low RPMs, essential for digging in tough terrain and pushing earth with the front blade. The 4x4 all-wheel drive transmission ensures traction on any type of terrain—even in muddy conditions, on slopes, or slippery pavement.

Technical Specifications

Operating Weight	~8,500 kg
Engine	Weichai — 74 kW / 100 HP
Drive Type	4×4 (all-wheel drive)
Front Loader Bucket	1.0 m³
Backhoe Bucket	0.2 m³
Max Travel Speed	~40 km/h
Transmission	Powershift with wet brakes

Key Features

Dual Functionality — front loader + excavator on the same machine, eliminating the need for two separate machines on site
Weichai 74 kW Engine — high torque, reliability in intensive use, widely available spare parts in the Moldovan and Romanian markets
Permanent 4x4 Drive — maximum performance on rough terrain, slopes, mud, or gravel
Powershift Transmission with Wet Brakes — shifting gears under load without interrupting power, increased durability compared to dry transmissions
Lateral Stabilizers (Outriggers) — secure anchoring in the ground during excavation, eliminating frame oscillations
Excavating Arm with Side Shift — excavation outside the machine's axis, ideal for trenches near curbs or foundations
Ergonomic Cab with Reversible Seat — operator turns towards the excavating arm for precise control, without fatigue
High Flow Hydraulic Circuit — compatible with hydraulic hammers, augers, and other high-demand attachments

The Lonking 83C is the choice for builders, farmers, and infrastructure contractors who need a robust, versatile, and cost-effective machine capable of replacing two or three specialized machines with a single investment.

Operating weight, kg

8300

Loader bucket capacity, m3

1.0

Excavator bucket capacity, m3

0.2

Length, mm

5835

Width, mm

2350

Height, mm

3575

Tractive force, kN

Maximum digging-loading force, kN

Maximum bucket digging force, kN

Maximum arm digging force, kN

Maximum discharge height, mm

2685

Maximum lifting capacity, kN

Arm raise time, s

4.9

Engine Model

Weichai WP4G100E220

Power, kw/rpm

74/2200

Maximum torque, Nm

380

Displacement, cm3

4500

Maximum speed, km/h

36.5

Service brake

oil-immersed

Parking brake

disc type

Front axle

Carraro directional

Rear axle

Carraro

Front/rear tires

14-17.5-14PR / 19.5-24-12PR

Pump type

Axial Piston Rexroth LA10VO84DFLR

Pump flow, l/min

165

System Pressure MPa

25.1

Fuel tank capacity, l

155

Hydraulic tank capacity, l

117

The 83C excavator is a high-performance compact machine, designed for earthmoving, construction, and urban landscaping works. Equipped with a powerful and fuel-efficient diesel engine, it offers an ideal combination of power, reliability, and economy.

Its high-precision hydraulic system ensures fine control of all movements, and the reduced response time increases productivity in digging, loading, and leveling operations. The robust construction and short tail swing design allow for safe maneuvering in confined spaces, while maintaining stability and digging force.

The spacious cabin, with excellent visibility and an ergonomic control panel, offers high operator comfort even in difficult conditions. Equipped with auxiliary hydraulic lines for attachments such as hydraulic hammers or grapples, the 83C becomes a versatile excavator, suitable for a wide range of professional applications.

1. Design and construction
Lonking 83C is designed for durability and high performance in harsh working conditions. Its solid structure ensures stability, strength, and a long service life.
2. Engine and performance
Equipped with a powerful diesel engine, the Lonking 83C offers an optimal balance between power and efficiency. Its power is sufficient to perform heavy tasks with increased productivity.
3. Lifting capacity and digging performance
The model features a competitive lifting capacity and efficient digging depth, making it ideal for complex loading and excavation tasks.
4. Hydraulic system
Equipped with an advanced hydraulic system, the Lonking 83C ensures smooth and precise operation of the boom and bucket, which improves work speed and accuracy.
5. Cabin and operator comfort
The cabin is ergonomic, with excellent visibility and intuitive controls, providing a comfortable and safe environment for the operator.
6. Maintenance and reliability
The machine's construction allows easy access to maintenance points, and high-quality components reduce downtime and increase long-term reliability.
