Transpalet Electric cu Catarg CDD15J-Li M350

Electric Stacker CDD15J-Li M350

Watch on YouTube Compare
Power type
Electric
Mast type
Duplex
Lifting capacity, kg
1500
Maximum fork lifting height, mm
3500
Stacker length x width, mm
1740 x 795
Price on request
Complete the form below

Request a quote

Contact a sales representative 022 788 907
or fill in the contact form

Contact details

Customer type

We use your details to answer your request and send you a quote. Your name and phone number reach our sales team as soon as you go to step 2, even if you do not finish the request. Privacy policy

Delivery & payment

Delivery method
Payment

Company details

Please enter 13 digits (IDNO)

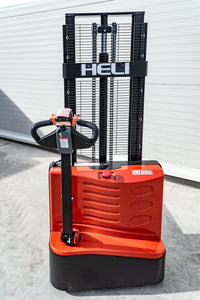

Electric stacker CDD15J-Li M350 – 1.5 tonnes, Duplex mast at 3,500 mm

The CDD15J-Li M350 brings lithium-ion technology to an electric stacker with a Duplex mast, able to lift to 3,500 mm — a balance between stacking height and a compact footprint of 1,740 x 795 mm.

Lithium-ion technology and drive

  • 24V / 60Ah lithium-ion battery, fast charging and maintenance-free.
  • Heli Controller motor, power 1.5 kW / 2.2 kW.
  • Duplex mast.
  • Maximum speed 4.2 km/h, gradeability 6/8°.

Technical data and dimensions

  • Lifting capacity: 1,500 kg
  • Maximum lift height: 3,500 mm (Duplex mast)
  • Dimensions: 1,740 x 795 mm
  • Turning radius: 1,342 mm
  • Minimum working aisle width: 2,040 mm (800x1,200 mm pallets)
  • Weight: 458 kg

Recommended applications

Suitable for:

  • Warehouses with mid-level stacking and limited space
  • Companies that want low battery maintenance costs
  • Intensive daily use on a single shift
Power type
Electric
Mast type
Duplex
Lifting capacity, kg
1500
Maximum fork lifting height, mm
3500
Stacker length x width, mm
1740 x 795
Load centre, mm
600
Lowered mast height, mm
2300
Fork size, mm
1150
Wheel type
Polyurethane
Turning radius, mm
1342
Working aisle width with 800 x 1200 pallet, mm
2040
Motor model
Heli Controller
Rated power
1.5 kW / 2.2 kW
Maximum climbable slope, degrees
6/8
Maximum speed, km/h
4.2
Weight, kg
458
Battery
24V / 60Ah

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling.
Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.

  • Electric stacker with Li-Ion battery (maintenance-free, no hydrogen emissions). The HELI CDD15J-Li-M350 electric stacker has been designed to combine strength and flexibility, and can meet the requirements of many demanding applications. Whether it is supermarket applications, deliveries, unloading or line production, the CDD15J-Li-M350 offers enough power and durability to minimise the total cost of ownership.
    • Lifting height, Duplex mast: 3.5 m
    • Waterproof connectors, fully encapsulated electronic control unit
    • Extremely low vibration and noise levels
    • Emergency STOP button
    • Counter with LED display of operating hours and battery level
    • Handle that integrates all the equipment functions, operated by simply pressing the related buttons
    • Designed specifically for handling in narrow spaces
  • Equipped with an energy-efficient magnetic motor drive system.
  • The traction components, designed in Germany, withstand severe operating conditions such as low temperatures, humidity and dusty environments.
  • The traction handle integrates all the necessary controls in an ergonomic layout.
  • Lithium battery.
