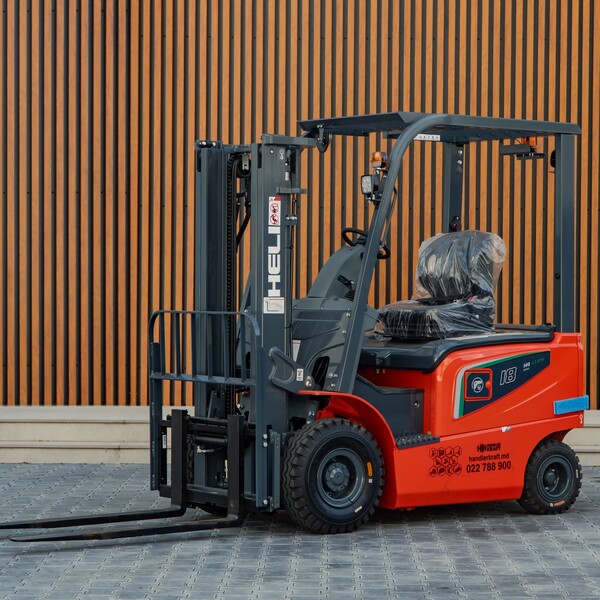

Electric Forklift CPD18-A7LIH4-S M330

Watch on YouTube Compare

Power type: Electric
Mast type: Duplex
Lifting capacity, kg: 1800
Maximum fork lifting height, mm: 3300
Forklift length x width, mm: 2205 x 1120

Price on request

Complete the form below

Request a quote

Contact a sales representative 022 788 907 Contact us on WhatsApp

or fill in the contact form

Contact details

Customer type

Individual Order under your personal name Legal entity Order on behalf of a company

Phone

Full name

We use your details to answer your request and send you a quote. Your name and phone number reach our sales team as soon as you go to step 2, even if you do not finish the request. Privacy policy

Delivery & payment

Delivery method

Pickup from store Pick up the product from our location Delivery Delivery to the provided address

Delivery address / Location (optional)

Payment

Bank transfer Invoice / bank details on request Pay at store Pay at our location (POS / cash)

Quote request details (optional)

Company details

Company

IDNO

Please enter 13 digits (IDNO)

VAT (optional)

Legal address (optional)

IBAN account (optional)

Electric forklift CPD18-A7LIH4-S M330 – 1.8 tonnes, Duplex mast at 3,300 mm

The Duplex version of the A7LIH4 series, CPD18-A7LIH4-S M330 offers 1,800 kg lifting capacity at 3,300 mm, suited to warehouses where a Triplex mast is not needed.

Heli motor and standard equipment

Heli electric motor, top speed 15 km/h.
80V/202Ah battery with built-in 80V/25Ah charger.
Hydraulic side shifter for fast pallet positioning.
LED headlights included.

Technical data and dimensions

Lifting capacity: 1,800 kg
Maximum lift height: 3,300 mm (Duplex mast)
Dimensions: 2,205 x 1,120 mm
Turning radius: 1,920 mm
Minimum working aisle width: 3,575 mm (800x1,200 mm pallets)
Weight: 3,215 kg

Where it proves its efficiency

Suitable for:

Warehouses with low-to-medium racking
Companies that want a reliable electric forklift with no extra cost for a Triplex mast
Long-term indoor operation

Power type

Electric

Mast type

Duplex

Lifting capacity, kg

1800

Maximum fork lifting height, mm

3300

Forklift length x width, mm

2205 x 1120

Load centre, mm

500

Lowered mast height, mm

2145

Fork size, mm

1200

Mast tilt angle

6/8

Wheel type

Solid

Turning radius, mm

1920

Working aisle width with 800 x 1200 pallet, mm

3575

Motor model

Heli Electric

Maximum climbable slope, degrees

15/25

Maximum speed, km/h

Weight, kg

3215

Battery

80V / 202Ah

Charger

Built-in 80V / 25Ah

Hydraulic attachments

Side Shifter (lateral movement of the forks)

Other options

LED headlights

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling.
Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.

Advantages of the HELI A7LiH4-S series (with lithium-ion battery)
Modern lithium-ion battery technology
• Fast charging (up to 2 hours for a full charge)
• Opportunity charging possible (during breaks)
• Maintenance-free (no water topping up required, no hazardous gases)
• Lifespan of up to 4000 cycles
High performance
• Fast acceleration, travel speed up to 15 km/h
• Good gradeability (up to 27%)
• Constant power even at low temperatures
Reliability and safety
• Modern MOSFET/AC controllers
• Safe hydraulic-mechanical braking system
• High stability in operation
Operator comfort
• Ergonomic driver space
• Good visibility in all directions
• Low noise and vibration levels
Low operating costs
• Lower lifetime cost (TCO)
• Low electricity consumption
• No battery maintenance costs
Flexibility of use
• Can be used both indoors (warehouses) and outdoors (yards, ramps)
• Pneumatic tyres for varied terrain
