Stivuitor Electric CPD35-A7LIH4-S ZSM470

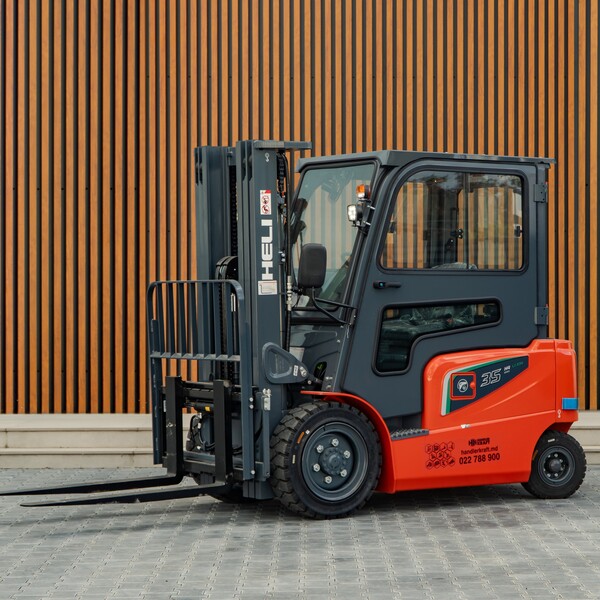

Electric Forklift CPD35-A7LIH4-S ZSM470

Power type: Electric
Mast type: Triplex
Lifting capacity, kg: 3500
Maximum fork lifting height, mm: 4700
Forklift length x width, mm: 2572 x 1260

Price on request

Complete the form below

Request a quote

Contact a sales representative Contact us on WhatsApp

or fill in the contact form

Contact details

Customer type

Individual Order under your personal name Legal entity Order on behalf of a company

Phone

Full name

We only use your details to reply to this request. Privacy policy

Delivery & payment

Delivery method

Pickup from store Pick up the product from our location Delivery Delivery to the provided address

Delivery address / Location

Payment

Bank transfer Invoice / bank details on request Pay at store Pay at our location (POS / cash)

Quote request details (optional)

Company details

Company

IDNO

Please enter 13 digits (IDNO)

VAT (optional)

Legal address (optional)

IBAN account (optional)

3.5-tonne electric forklift CPD35-A7LIH4-S ZSM470 – high capacity, zero emissions

CPD35-A7LIH4-S ZSM470 brings the power of a 3,500 kg forklift in a 100% electric version, with a 4,700 mm Triplex mast — for companies that want to eliminate diesel without reducing working capacity.

Heli motor and robust equipment

Heli electric motor, top speed 15 km/h.
80V/202Ah battery with built-in 80V/35Ah charger.
Hydraulic side shifter for precise positioning of heavy loads.
LED headlights as standard.

Main technical specifications

Lifting capacity: 3,500 kg
Maximum lift height: 4,700 mm (Triplex mast)
Dimensions: 2,572 x 1,260 mm
Turning radius: 2,270 mm
Minimum working aisle width: 3,952 mm (800x1,200 mm pallets)
Weight: 4,810 kg

Recommended applications

Recommended for:

Warehouses and production halls with medium-to-heavy loads
Companies switching from diesel to electric forklifts with no loss of capacity
Logistics centres with high racking

Power type

Electric

Mast type

Triplex

Lifting capacity, kg

3500

Maximum fork lifting height, mm

4700

Forklift length x width, mm

2572 x 1260

Load centre, mm

500

Lowered mast height, mm

2150

Mast tilt angle

6/12

Fork size, mm

1200

Wheel type

Solid

Turning radius, mm

2270

Working aisle width with 800 x 1200 pallet, mm

3952

Motor model

Heli Electric

Maximum climbable slope, degrees

15/25

Maximum speed, km/h

Weight, kg

4810

Battery

80V / 202Ah

Charger

Built-in 80V / 35Ah

Hydraulic attachments

Side Shifter (lateral movement of the forks)

Other options

LED headlights

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling.
Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.

Launched in 2023, the new HELI H4 series model is a modern electric forklift with compact dimensions, high performance and zero emissions. The LiFePO4 battery offers increased autonomy, safety and superior energy efficiency compared to traditional batteries.
