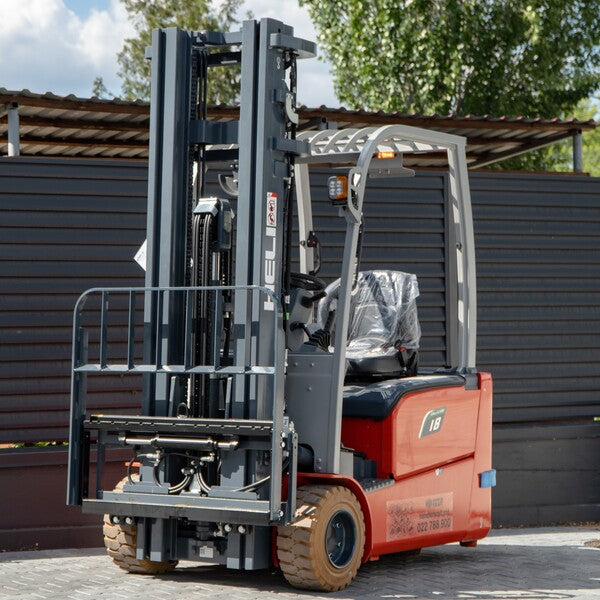

Electric Forklift CPD18SQ-A6LIG3 ZSM500

Electric forklift CPD18SQ-A6LIG3 ZSM500 – 1.8 tonnes, lift to 5,000 mm

CPD18SQ-A6LIG3 ZSM500 completes the A6LIG3 series with a version offering 5,000 mm lift height, keeping the 1,800 kg capacity and a residual capacity of 1,600 kg at maximum height – a good balance between height and manoeuvrability.

LiFePO4 battery and standard equipment

• HELI motor and controller, front-wheel drive, top speed 16 km/h, climbable slope with load 22%.
• HELI LiFePO4 80V/202Ah battery, maintenance-free, with built-in 80V/35A charger; 80% of capacity in 1 hour, 100% in 1.5–2 h with a fast charger.
• 3-valve hydraulic distributor and HELI Hook-on Side Shift for fast pallet positioning.
• Solid non-marking tyres (front 200/50-10, rear 140/55-9).
• Ergonomic seat and operator presence sensor with seat belt, included.
• LED lighting, priority hydraulic steering system and high-precision steering angle sensor.
• Lifting speed with load 0.45 m/s, without load 0.6 m/s.

Technical specifications

• Lifting capacity: 1,800 kg
• Maximum lift height: 5,000 mm (Triplex mast)
• Lowered mast height: 2,350 mm
• Residual capacity at maximum height: 1,600 kg
• Dimensions (length without forks x width): 2,055 x 1,120 mm
• Forks: 1,200 mm
• Turning radius (external): 1,675 mm
• Working aisle width: 3,245 mm (800x1,200 mm pallets)
• Total weight (with / without battery): 3,225 / 2,945 kg
• Mast tilt: 5° / 7°
• Maximum speed with / without load: 16 / 16 km/h
• Climbable slope with / without load: 22% / 30%

Recommended applications

Suitable for:

• Warehouses with high racking and a steady volume of goods
• Companies that want a versatile electric forklift for daily operation
• Distribution centres with vertical storage space
