Stivuitor Electric CPD18SQ-A6LIG3 ZSM540

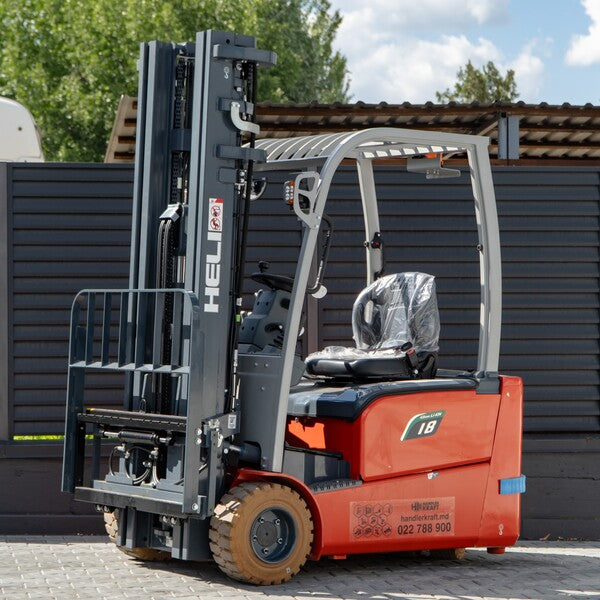

Electric Forklift CPD18SQ-A6LIG3 ZSM540

Power type: Electric
Mast type: Triplex
Lifting capacity, kg: 1800
Maximum fork lift height, mm: 5400
Forklift length x width, mm: 2055 x 1120

Price on request

Complete the form below

Request a quote

Contact a sales representative Contact us on WhatsApp

or fill in the contact form

Contact details

Customer type

Individual Order under your personal name Legal entity Order on behalf of a company

Phone

Full name

We only use your details to reply to this request. Privacy policy

Delivery & payment

Delivery method

Pickup from store Pick up the product from our location Delivery Delivery to the provided address

Delivery address / Location

Payment

Bank transfer Invoice / bank details on request Pay at store Pay at our location (POS / cash)

Quote request details (optional)

Company details

Company

IDNO

Please enter 13 digits (IDNO)

VAT (optional)

Legal address (optional)

IBAN account (optional)

Electric forklift CPD18SQ-A6LIG3 ZSM540 – 1.8 tonnes, Triplex mast at 5,400 mm

CPD18SQ-A6LIG3 ZSM540 combines a 1,800 kg capacity with a lift of 5,400 mm, suited to warehouses with high racking that need a reliable electric forklift for daily operation.

What this model includes

Heli electric motor, top speed 16 km/h.
80V/202Ah battery with built-in 80V/35Ah charger.
Hydraulic side shifter for fast pallet positioning.
LED headlights included as standard.

Technical data at a glance

Lifting capacity: 1,800 kg
Maximum lift height: 5,400 mm (Triplex mast)
Dimensions: 2,055 x 1,120 mm
Turning radius: 1,508 mm
Minimum working aisle width: 3,445 mm (800x1,200 mm pallets)
Weight: 3,200 kg

Recommended applications

Suitable for:

Warehouses with high racking and a steady flow of pallets
Distribution centres that want an electric forklift with no emissions
Long-term indoor operation with low running costs

Power type

Electric

Mast type

Triplex

Lifting capacity, kg

1800

Maximum fork lift height, mm

5400

Forklift length x width, mm

2055 x 1120

Load centre, mm

400

Lowered mast height, mm

2425

Mast tilt angle

3/5

Fork size, mm

1200

Wheel type

Solid

Turning radius, mm

1508

Working aisle width with 800 x 1200 pallet, mm

3445

Motor model

Heli Electric

Maximum climbable slope, degrees

22/30

Maximum speed, km/h

16 / 16

Weight, kg

3200

Battery

80V / 202Ah

Charger

Built-in 80V / 35Ah

Hydraulic attachments

Side Shifter (lateral movement of the forks)

Other options

LED headlights

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling.
Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.

The HELI G3 series represents a new generation of electric forklifts designed for maximum efficiency, comfort and durability. With a modern design and cutting-edge technologies, the G3 range offers superior performance, excellent stability and low operating costs. Equipped with advanced electronic control systems, powerful motors and high-capacity batteries, the G3 series forklifts ensure high productivity and quiet operation in any working environment.
