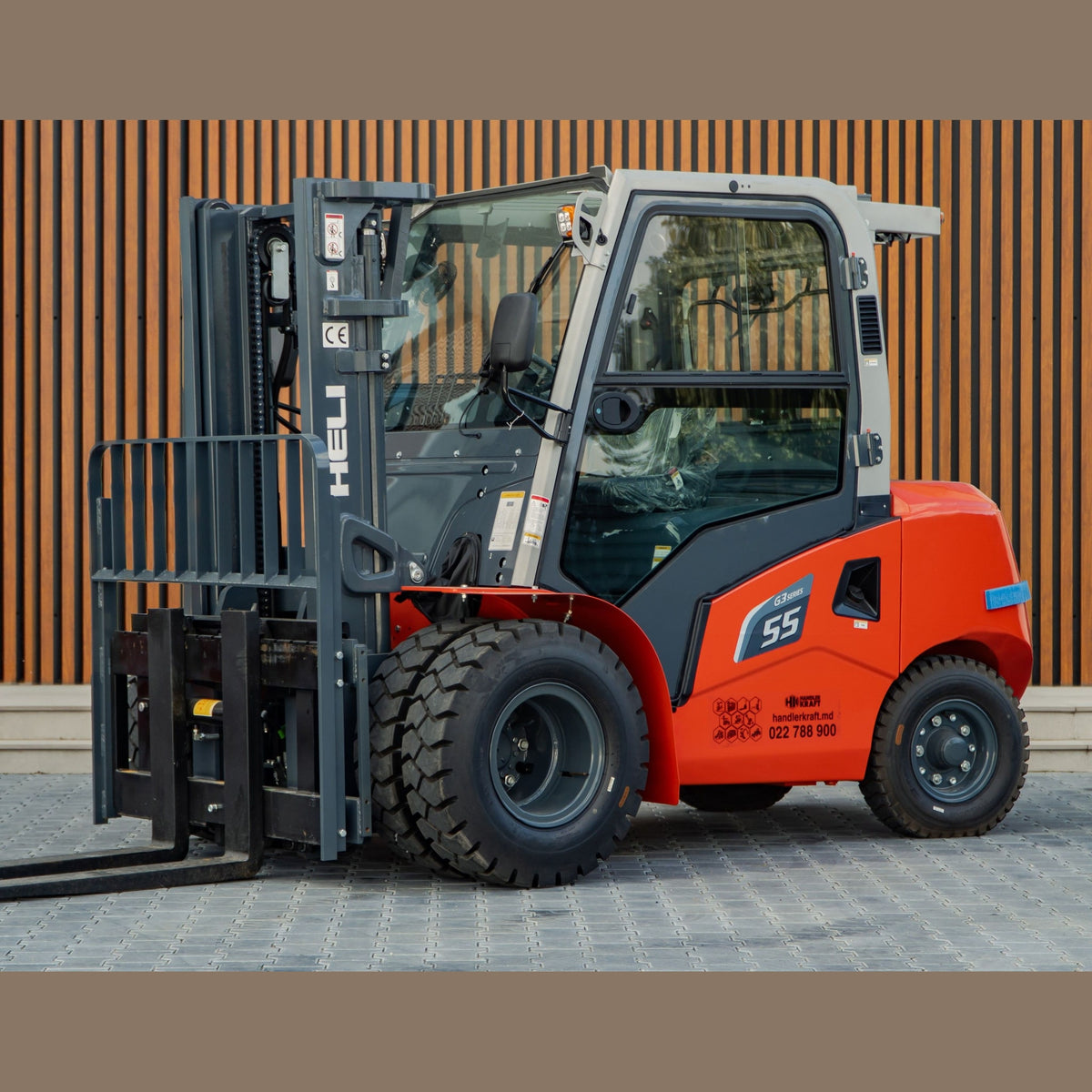

Stivuitor diesel HELI CPCD55-QC7G3 ZSM450, 5,5 tone, catarg 4,5 m

Diesel Forklift CPCD55-QC7G3 ZSM450

Compare
Power type
Diesel
Mast Type
Triplex
Lifting Capacity, kg
5500
Maximum Fork Lifting Height, mm
4500
Forklift Length x Width, mm
4325 x 1510
Price on request

Available to order (90 days)

Available to order — request a quote

or fill in the contact form

Contact details

Customer type

We use your details to answer your request and send you a quote. Your name and phone number reach our sales team as soon as you go to step 2, even if you do not finish the request. Privacy policy

Delivery & payment

Delivery method
Payment

Company details

Please enter 13 digits (IDNO)

5.5-tonne diesel forklift CPCD55-QC7G3 ZSM450 - heavy loads at 4.5 metres

The high-mast version of the CPCD55-QC7G3: 5,500 kg lifting capacity and a lift height of up to 4,500 mm, with a residual capacity of 5,300 kg at maximum height - almost the entire capacity remains available on the upper levels too. The 65 kW common rail engine, hydraulic fork positioner and heated cab make it suitable for intensive work all year round, including outdoors.

Engine and hydraulic system

  • Quanchai 4C6-88C31 diesel engine (Bosch Common Rail): 65 kW at 2,200 rpm, 3,470 cm³.
  • Fork positioner with side shift: the distance between the forks and their lateral position are adjusted hydraulically, for pallets and loads of different widths.
  • 4-valve hydraulic distributor for controlling attachments.
  • 1,600 mm forks for long goods and deep loads.
  • Maximum speed: 26 km/h unladen / 25 km/h laden; gradeability of up to 33%.

Equipment included

  • Heated cab for work in the cold season.
  • Ergonomic seat with operator presence sensor and seat belt.
  • Solid tyres: front 300-15-18PR / rear 7.00-12-14PR.

Technical specifications

  • Lifting capacity: 5,500 kg
  • Maximum lift height: 4,500 mm (Triplex mast)
  • Residual capacity at maximum height: 5,300 kg
  • Collapsed mast height: 3,050 mm
  • Mast tilt: 6 / 12 degrees
  • Overall dimensions (L x W): 4,325 x 1,510 mm
  • Outer turning radius: 2,900 mm
  • Working aisle width: 4,940 mm (800x1,200 mm pallets)
  • Operating weight: 6,920 kg

Recommended applications

Capacity retained at height and the fork positioner make it a good fit for:

  • Warehouses with racking systems for heavy pallets, where goods are stored on the upper levels
  • Building materials, rolled metal and timber - long loads or loads of different widths
  • Industrial yards and loading platforms, with outdoor work, including in winter

Need a lift of only up to 3 m? See the CPCD55-QC7G3 M300 version. For other capacities, see all diesel forklifts. Price and availability: +373 60 591 212.

Power type
Diesel
Mast Type
Triplex
Lifting Capacity, kg
5500
Maximum Fork Lifting Height, mm
4500
Forklift Length x Width, mm
4325 x 1510
Collapsed Mast Height, mm
3050
Residual Load at Maximum Lift Height, kg
5300
Tyre Type
Solid
Front / Rear Tyres, 2/2
300-15-18PR / 7.00-12-14PR
Hydraulic Distributor, Double IHR
4 valves
Hydraulic Attachments
fork positioner with side shift
Forks, mm
1600
Engine Model
Quanchai 4C6-88C31 Bosch common rail (Diesel)
Nominal Power / rpm, kW
65 / 2200
Engine Displacement, cm³
3470
Operating Weight, kg
6920
Mast Tilt, degrees
06/12
Turning Radius (outer), mm
2900
Climbing Gradient laden/unladen, %
33/28%
Maximum Speed laden/unladen, km/h
25/26
Working Aisle Width (for 800x1200 mm pallet), mm
4940
Optional Equipment Included
Ergonomic seat with operator presence sensor and seat belt / Heated cab

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling. Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.
