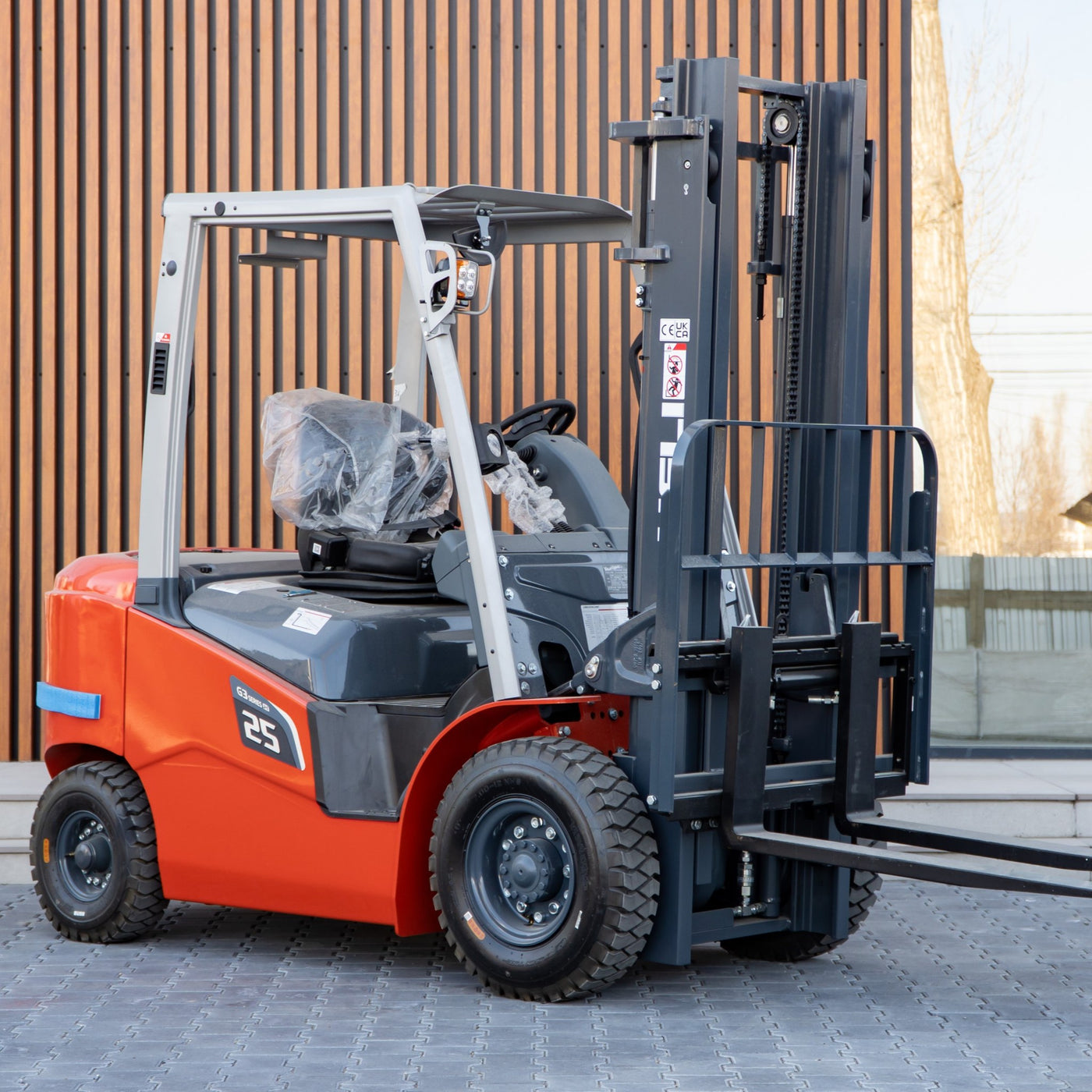

Diesel Forklift CPCD25-M3RG3 M300

2.5-tonne diesel forklift CPCD25-M3RG3 M300 – a solid-tyre solution for lifting up to 3 metres

The diesel forklift CPCD25-M3RG3 M300 is the Duplex version fitted with solid tyres, designed for medium-height lifting operations (up to 3,000 mm) in halls, warehouses and industrial yards with concrete or asphalt surfaces. The reliability of the Mitsubishi diesel engine and the low maintenance costs of solid tyres make it suited to intensive day-to-day use.

Mitsubishi engine and full equipment

• Mitsubishi S4S diesel engine: 36.8 kW at 2,500 rpm, 3,170 cm³ — an engine block known for durability and efficient fuel consumption.
• Solid tyres (7.00-12-12PR front / 6.00-9-10PR rear): zero puncture risk and increased cut resistance, ideal for industrial yards.
• Hook-on hydraulic side shifter: lateral fork movement for fine pallet positioning, attachable as needed.
• Ergonomic seat and operator presence sensor with seat belt: included as standard, for increased safety in use.

Technical data at a glance

• Lifting capacity: 2,500 kg
• Maximum lift height: 3,000 mm (Duplex mast)
• Dimensions: 2,660 × 1,160 mm
• Turning radius: 2,475 mm
• Minimum working aisle width: 3,975 mm (800×1,200 mm pallets)
• Weight: 3,820 kg

Recommended for

The CPCD25-M3RG3 M300 suits companies that need:

• Pallet handling at medium heights (up to 3 m) in halls and warehouses
• Operation on concrete or asphalt surfaces, where solid tyres eliminate the risk of punctures
• A robust diesel forklift with a side-shift attachment for precise load positioning
