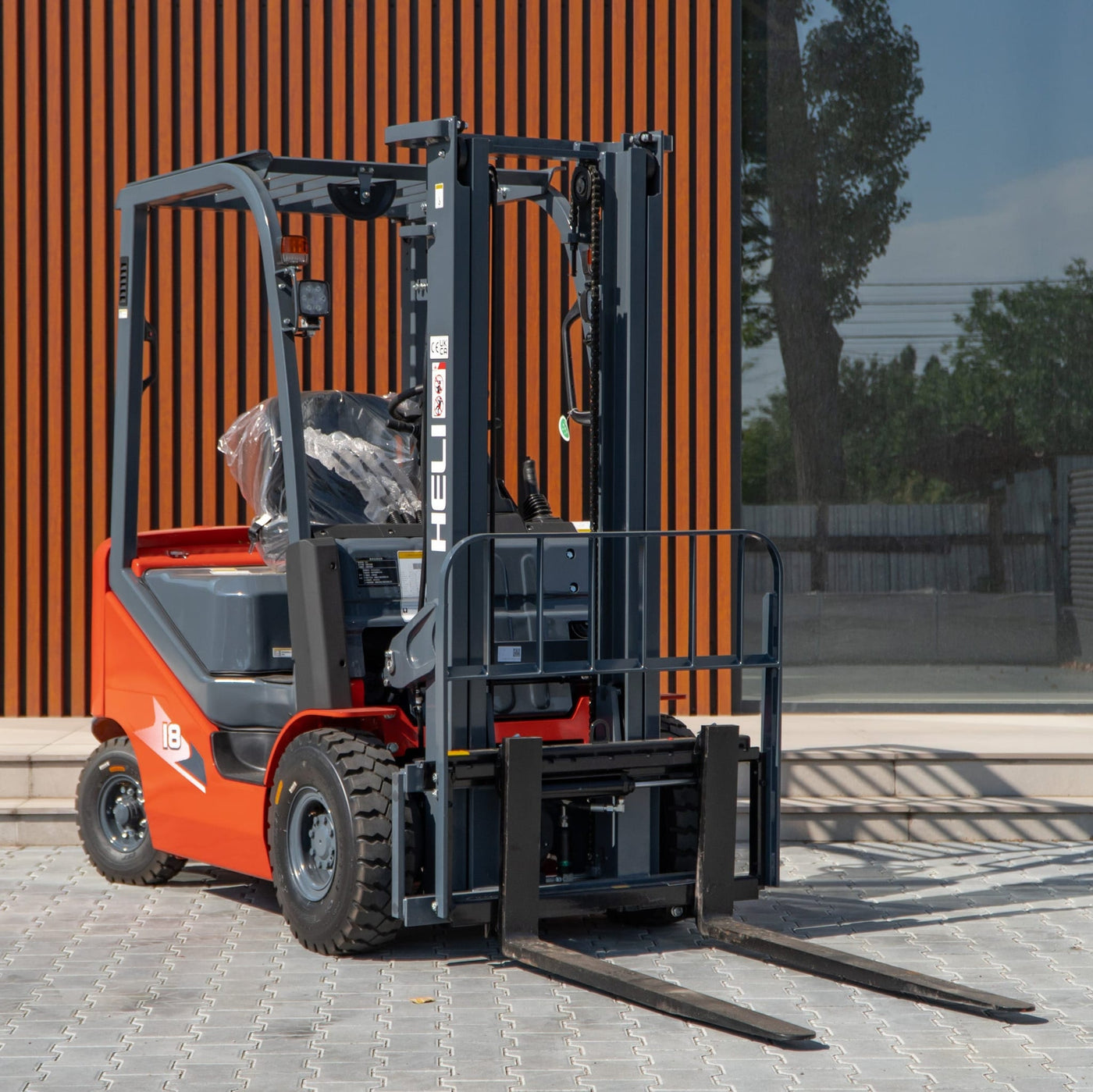

Stivuitor Diesel CPCD18-QC1H3 M330

Diesel Forklift CPCD18-QC1H3 M330

Power type
Diesel
Mast Type
Duplex
Lifting Capacity, kg
1800
Maximum Fork Lifting Height, mm
3300
Forklift Length x Width, mm
2299 x 1170
€9,900
230,104.00 MDL Price at today's EUR - MDL exchange rate

Request a quote

or fill in the contact form

Contact details

Customer type

We only use your details to reply to this request. Privacy policy

Delivery & payment

Delivery method
Payment

Company details

Please enter 13 digits (IDNO)

Diesel forklift CPCD18-QC1H3 M330 - 1.8 tonnes, Duplex mast for low-ceiling spaces

For warehouses where a lift height of 3,300 mm is enough, the CPCD18-QC1H3 M330 offers the same diesel reliability as the Triplex version, but with a simpler Duplex mast that is easier to maintain. The 1,800 kg capacity covers most daily operations with standard pallets.

Efficient engine and good manoeuvrability

  • Quanchai 4B4-45V32 diesel engine: 32 kW at 2,600 rpm, 2,270 cm³.
  • Pneumatic tyres for comfort and grip on varied surfaces.
  • Turning radius of just 1,930 mm — easy manoeuvres in crowded storage areas.
  • Hydraulic side shifter included plus LED headlights as standard.

Technical data and dimensions

  • Lifting capacity: 1,800 kg
  • Maximum lift height: 3,300 mm (Duplex mast)
  • Dimensions: 2,299 x 1,170 mm
  • Turning radius: 1,930 mm
  • Minimum working aisle width: 4,035 mm (800x1,200 mm pallets)
  • Weight: 3,150 kg

What it is suited to

A practical machine for:

  • Warehouses with a low ceiling or low-to-medium racking
  • Unloading trucks and handling pallets at ground level
  • Companies looking for an economical diesel forklift for daily operations
Power type
Diesel
Mast Type
Duplex
Lifting Capacity, kg
1800
Maximum Fork Lifting Height, mm
3300
Forklift Length x Width, mm
2299 x 1170
Load Centre, mm
500
Lowered Mast Height, mm
2145
Mast Tilt Angle
6/10
Fork Dimensions, mm
1200
Wheel Type
Pneumatic
Turning Radius, mm
1930
Working Aisle Width with 800 x 1200 Pallet, mm
4035
Engine Model
Quanchai 4B4-45V32
Engine Displacement
2270
Rated Power
32 / 2600
Maximum Gradeability, degrees
29 / 22
Maximum Speed, km/h
18
Weight, kg
3150
Hydraulic Attachments
Side Shifter (lateral movement of the forks)
Other options
LED Headlights

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling.
Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.

HELI 1–1.8 ton forklifts are designed with compact dimensions, offering excellent manoeuvrability in narrow spaces or narrow aisles.
Efficient operation:
These forklifts are designed for smooth and efficient operation, ensuring optimal productivity when handling light loads.
Versatility:
HELI 1–1.8 ton forklifts can be used in various industries and applications, such as warehouses, distribution centres, factories, and stores, where lighter loads need to be handled.
Durability:
HELI forklifts are built to withstand tough working conditions. They are made of robust materials and components, ensuring durability and an extended lifespan.
Efficient fuel consumption:
The diesel model is recognized for its low fuel consumption, helping to lower long-term operating costs.
Multiple use:
The forklift is extremely versatile and can handle different types of loads: pallets, containers or heavy equipment – ideal for diverse industrial environments.
Operator comfort and safety:
Equipped with ergonomic elements and safety features – comfortable driving position, easy-to-use controls, seat belts and warning lights.
