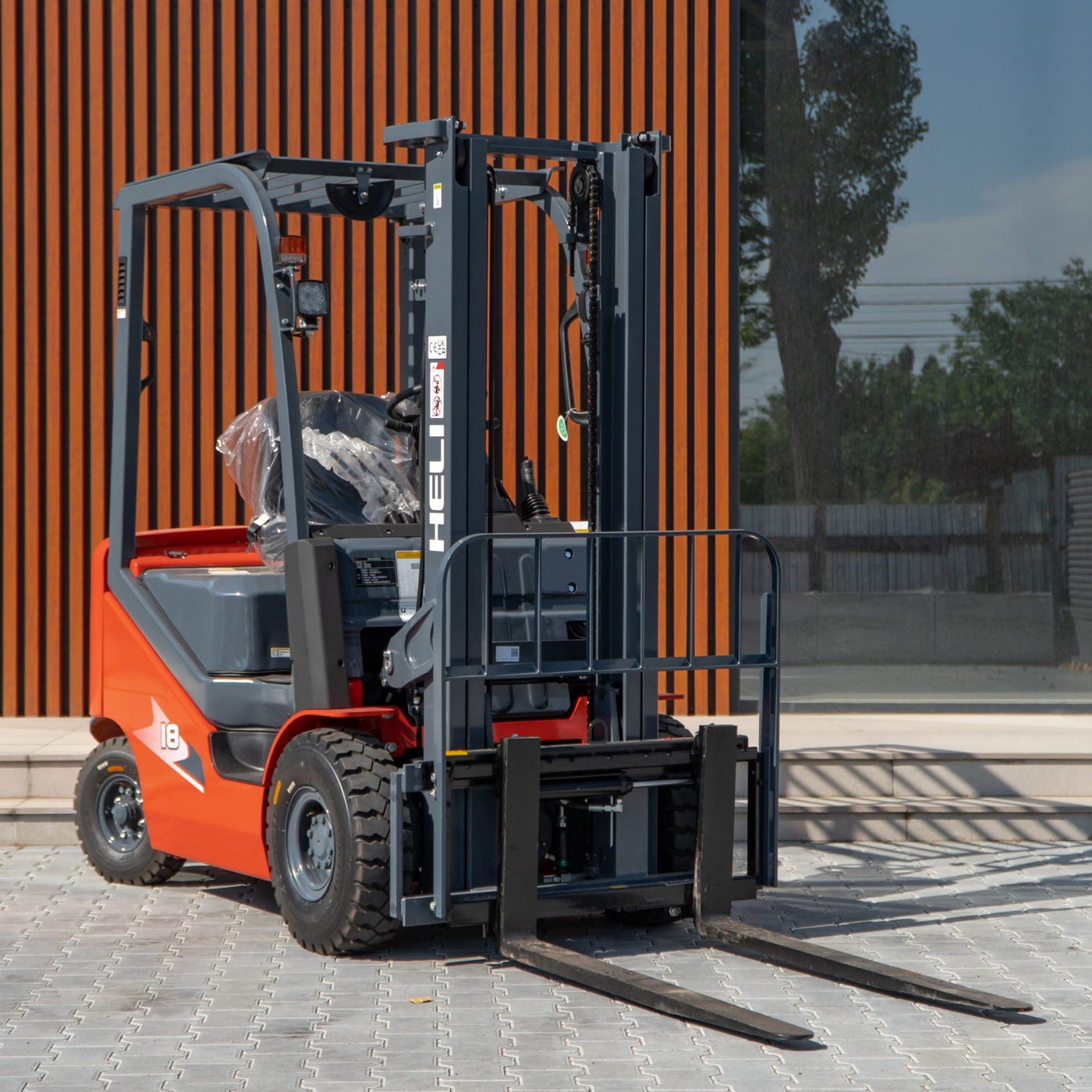

Stivuitor diesel HELI CPCD18-QC1H cu catarg triplex ZSM480 pentru depozit

Diesel Forklift CPCD18-QC1H ZSM480

Power type: Diesel
Mast Type: Triplex
Lifting Capacity, kg: 1800
Maximum Fork Lifting Height, mm: 4800
Forklift Length x Width, mm: 2299 x 1170

Price on request

Complete the form below

Request a quote

Contact a sales representative Contact us on WhatsApp

or fill in the contact form

Contact details

Customer type

Individual Order under your personal name Legal entity Order on behalf of a company

Phone

Full name

We only use your details to reply to this request. Privacy policy

Delivery & payment

Delivery method

Pickup from store Pick up the product from our location Delivery Delivery to the provided address

Delivery address / Location

Payment

Bank transfer Invoice / bank details on request Pay at store Pay at our location (POS / cash)

Quote request details (optional)

Company details

Company

IDNO

Please enter 13 digits (IDNO)

VAT (optional)

Legal address (optional)

IBAN account (optional)

1.8-tonne diesel forklift CPCD18-QC1H ZSM480 – compact, agile and ready for high racking

The CPCD18-QC1H ZSM480 diesel forklift is designed for warehouses and halls where manoeuvring space is limited but storage height remains a priority. With a 4,800 mm Triplex mast and a compact footprint, this model combines high lifting with a small turning radius, ideal for narrow aisles.

What recommends it: efficient engine and manoeuvrability

Solid capacity for its class: lifts up to 1,800 kg, enough for most standard pallets in storage and distribution.
Quanchai 4B4-45V32 diesel engine: 32 kW at 2,600 rpm, displacement 2,270 cm³.
Small turning radius: just 1,930 mm, for simple manoeuvres in tight spaces.
Side shifter included: lateral fork translation for fast pallet positioning.

Main technical specifications

Lifting capacity: 1,800 kg
Maximum lift height: 4,800 mm (Triplex mast)
Dimensions: 2,299 × 1,170 mm
Turning radius: 1,930 mm
Minimum working aisle width: 4,035 mm (800×1,200 mm pallets)
Weight: 3,150 kg

What it is suited to

Compact but capable of lifting to height, it is suited to:

Warehouses with narrow working aisles and medium-to-high racking
Cash & carry and industrial showrooms with limited manoeuvring space
Loading and unloading areas with tight access

Power type

Diesel

Mast Type

Triplex

Lifting Capacity, kg

1800

Maximum Fork Lifting Height, mm

4800

Forklift Length x Width, mm

2299 x 1170

Load Centre, mm

500

Lowered Mast Height, mm

2190

Mast Tilt Angle

6/10

Fork Dimensions, mm

1200

Wheel Type

Solid

Turning Radius, mm

1930

Working Aisle Width with 800 x 1200 Pallet, mm

4035

Engine Model

Quanchai 4B4-45V32

Engine Displacement

2270

Rated Power

32 / 2600

Maximum Gradeability, degrees

29 / 22

Maximum Speed, km/h

Weight, kg

3150

Hydraulic Attachments

Side Shifter (lateral movement of the forks)

Other options

LED Headlights, Standard Seat

HELI is the largest material handling equipment manufacturer in China and one of the leading suppliers worldwide. With over 60 years of experience in the industry, Heli provides modern, efficient and durable solutions for logistics, warehousing and goods handling.
Heli is recognized for the excellent quality of its products, constant investment in research and development and extensive global distribution network. By choosing Heli, you benefit from reliability, performance and professional technical support.

Improved performance, superior quality
• Vibrations reduced by 20%
• Noise reduced by 3 dB
• Workspace increased by 45%
• Operator visibility improved by 20%
• Operational efficiency increased by 20%
• Load capacity increased by over 5%
• Stability improved by 5%
• Reliability increased by 40%
• Engine hood opening angle increased to 80°

Compact design:

HELI 1–1.8 ton forklifts are designed with compact dimensions, offering excellent manoeuvrability in narrow spaces or aisles.

Efficient operation:

These forklifts are designed for smooth and efficient operation, ensuring optimal productivity when handling light and medium loads.

Versatility:

HELI 1–1.8 ton forklifts can be used in various industries and applications, such as warehouses, distribution centres, factories, and stores, where fast and safe handling of loads is required.

Durability:

HELI forklifts are built to withstand difficult working conditions. They are made from robust materials and components, ensuring durability and an extended lifespan.

Efficient fuel consumption:

The diesel model is known for its low fuel consumption, contributing to lower long-term operational costs.

Multiple uses:

The forklift is versatile and can handle different types of loads, such as pallets, containers, or heavy equipment, making it suitable for various industrial environments.

Comfort and safety for the operator:

Equipped with ergonomic elements and safety features, the forklift offers a comfortable driving position, easy-to-use controls, a seat belt, and warning lights.

Cost-effectiveness:

Due to their low consumption, durability, and easy maintenance, HELI forklifts are a cost-effective choice that optimises costs without compromising performance.

Excellent handling capabilities:

Equipped with a hydraulic control system, adjustable forks, and the possibility of mounting accessories, the forklift offers maximum precision and efficiency in goods handling.
