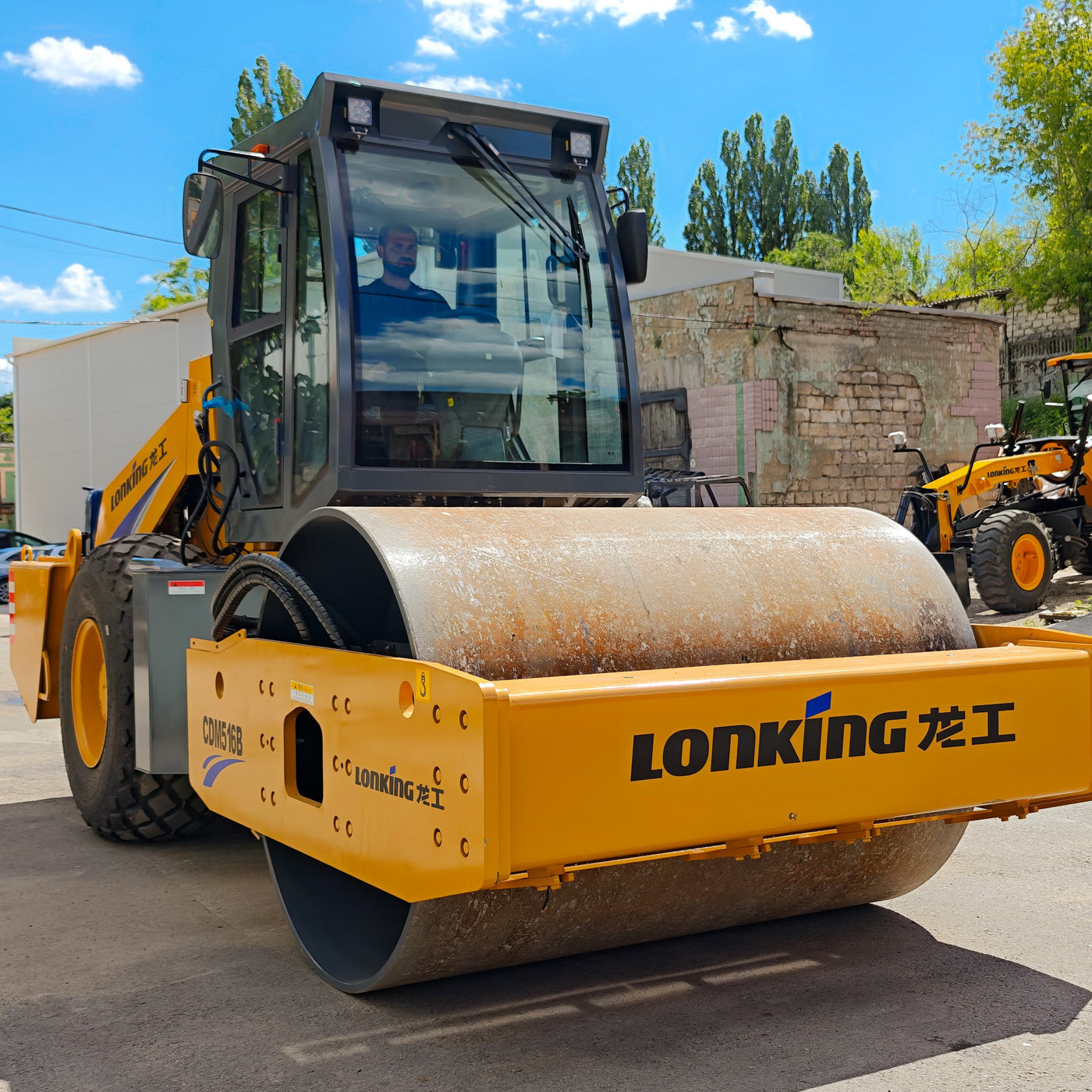

Compactor CDM516B

Compactor CDM516B

Compare
Operating weight, kg
16000
Drum load, kg
7300
Rear axle load, kg
8300
Ground clearance, mm
430
Wheelbase, mm
3080
Price on request

Available to order (90 days)

Available to order — request a quote

or fill in the contact form

Contact details

Customer type

We use your details to answer your request and send you a quote. Your name and phone number reach our sales team as soon as you go to step 2, even if you do not finish the request. Privacy policy

Delivery & payment

Delivery method
Payment

Company details

Please enter 13 digits (IDNO)

LONKING CDM516B vibratory compactor – 16 tonnes, 118 kW WEICHAI engine

The CDM516B is a smooth-drum vibratory compactor, designed for professional compaction of soil, gravel, ballast, and road foundations. With an operating weight of 16 tonnes, a dual-amplitude vibration system, and a 118 kW WEICHAI engine, the machine delivers solid performance on construction and infrastructure projects.

WEICHAI engine and dual vibration system

  • WEICHAI WP6G160E201 engine, 118 kW / 2,000 rpm, 6.75 l displacement.
  • Dual-amplitude vibration system (1.8 / 0.9 mm), 28 Hz frequency and 310 kN centrifugal force.
  • Robust high-strength steel drum, 2,120 mm width, 1,520 mm diameter.
  • Durable mechanical transmission, 3 forward gears / 2 reverse gears, maximum speed 7.6 km/h.
  • Panoramic cab with air conditioning, ROPS/FOPS protection, and ergonomic operator controls.

Main technical specifications

  • Operating weight: 16,000 kg
  • Engine: WEICHAI WP6G160E201, 118 kW
  • Centrifugal force: 310 kN
  • Vibration frequency: 28 Hz / Amplitude: 1.8 / 0.9 mm
  • Drum width: 2,120 mm
  • Fuel tank: 335 l / Hydraulic tank: 220 l

Recommended applications

Recommended for:

  • Compaction of soil, gravel, ballast, and road foundations
  • Large-scale infrastructure and road construction works
  • Contractors who need uniform compaction and low operating costs
Operating weight, kg
16000
Drum load, kg
7300
Rear axle load, kg
8300
Ground clearance, mm
430
Wheelbase, mm
3080
Gradeability, %
30
Overall length, mm
6080
Overall width, mm
2300
Overall height, mm
3200
Engine
WEICHAI WP6G160E201
Displacement, L
6.75
Fuel consumption, L/h
29
Rated power, kW
118
Rated speed, rpm
2000
Forward speed, gear 1, km/h
2
Forward speed, gear 2, km/h
3.6
Forward speed, gear 3, km/h
7.6
Reverse speed, gear 1, km/h
2
Reverse speed, gear 2, km/h
3.6
Minimum turning radius, mm
6500
Steering angle, °
33
Oscillation angle, °
10
Drum width, mm
2120
Drum diameter, mm
1520
Drum thickness, mm
30
Static linear load, N/cm
344
Centrifugal force, kN
310
Vibration frequency, Hz
28
Nominal amplitude, mm
1.8 / 0.9
Voltage, V
24
Battery capacity, Ah
120 x 2
Fuel tank, L
335
Hydraulic tank, L
220
